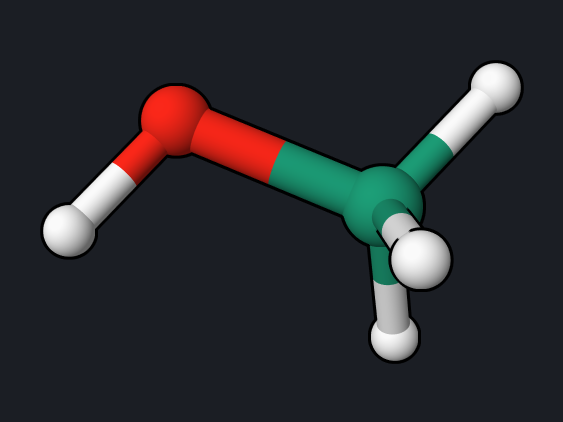

Methanol: Ground-State Molecular Dynamics¶

Born–Oppenheimer molecular dynamics moves the nuclei with Newton's equations using DFT forces computed at every step. This example runs 200 fs of methanol dynamics and shows how to check that the run conserves energy, which is the first test of any MD setup.

Copy and run¶

methanol-md.oqp

dft/pbe0/6-31g* md(nstep=400,dt=0.5,temperature=300,seed=11)
geom="""
C     -0.368510    -0.018320    -0.040858
O      0.960471    -0.504863    -0.078151
H     -0.621773     0.274423     0.981043
H     -0.462281     0.839754    -0.710960
H     -1.046098    -0.809945    -0.369227
H      1.538190     0.218952     0.218153
"""

Download methanol-md.oqp

openqp methanol-md.oqp

md(nstep=400,dt=0.5,...) runs 400 steps of 0.5 fs. The initial velocities are drawn from a Maxwell–Boltzmann distribution at 300 K; seed=11 fixes the random numbers so that the run can be repeated exactly. The starting structure is a force-field structure, not a PBE0 minimum, which is fine for MD. The run takes about 4.5 minutes with 4 threads (0.65 s per step).

What you get¶

File	Contents
`methanol-md.md.csv`	one row per step: time, potential, kinetic, and total energy (hartree), temperature (K)
`methanol-md.md.xyz`	the trajectory, one frame per step, with time and energy in the comment line; open it in OQP Studio, VMD, or Avogadro to watch the motion
`methanol-md.log`	the full log

The first and last rows of the CSV file:

step,time_fs,potential_hartree,kinetic_hartree,total_hartree,temperature_kelvin,thermostat_exchange_hartree,thermostat_exchange_cumulative_hartree
0,0.0000000000,-115.5781380818157,0.006253338174754533,-115.5718847436409,263.2864023367,0,0
...
400,200.0000000000,-115.5771554056878,0.005275975351826693,-115.571879430336,222.1361663771,0,0

Energies and temperature along the trajectory

Quantity	Reference value
Initial temperature	263 K
Mean temperature over 200 fs	191 K
Range of the total energy	3.7 × 10⁻⁵ hartree (0.023 kcal/mol)

Reading the result¶

The total energy is conserved. Potential and kinetic energy exchange continuously while their sum stays within 0.023 kcal/mol. No thermostat acts in this run (the thermostat-exchange columns are zero), so the total energy is the quantity to check. A drift several orders of magnitude larger would point to a time step that is too long or an SCF that is not converged tightly enough.
The temperature is not 300 K. For six atoms, one random draw at 300 K gave 263 K. Because the run starts close to a potential minimum, part of the kinetic energy flows into potential energy, and the average settles near 190 K. Equilibrate with a thermostat before collecting statistics.
The fast oscillations are the O–H and C–H stretching vibrations, with periods of about 10 fs.

Try next¶

Double the time step to dt=1.0 and compare the total-energy range.
Run longer with nstep=2000 and look at the methyl rotation in the trajectory file.
