Ammonia Inversion: Nudged Elastic Band (NEB)

The nudged elastic band (NEB) method finds a reaction path between two known structures without a transition-state guess: a chain of intermediate structures (images) connected by springs is relaxed until it lies along the minimum-energy path. Ammonia turns inside out like an umbrella through a planar transition state; the barrier is small and well known, which makes it a clean NEB test.

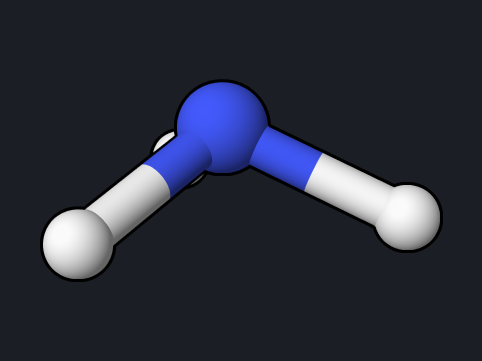

Image 1: pyramidal NH₃ (reactant)

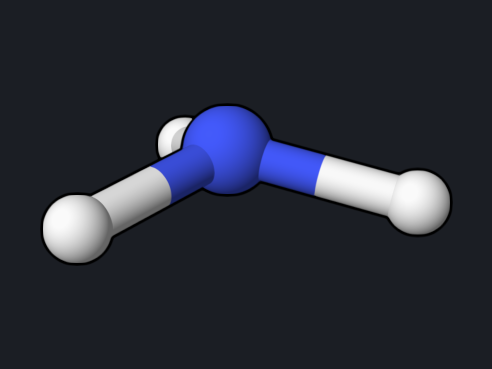

Image 3: halfway to planar

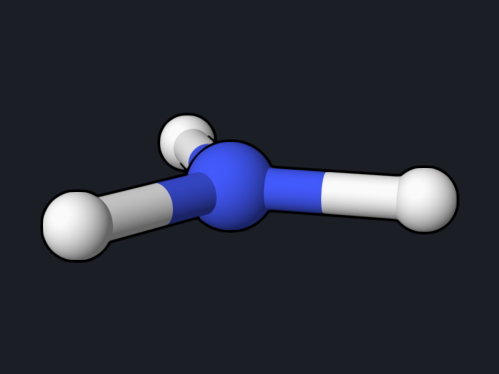

Image 5: planar, the top of the path

Copy and run

The NEB needs the reactant in the input and the product as a separate XYZ file. Download both into one folder: nh3-neb.oqp and nh3-inverted.xyz.

nh3-neb.oqp

dft/pbe0/6-31g* neb(S0,product="nh3-inverted.xyz",images=9) dftgrid(rad_npts=150,ang_npts=974)
geom="""
N      0.000000     0.000000     0.098477
H      0.000000     0.937185    -0.295432
H     -0.811626    -0.468592    -0.295432
H      0.811626    -0.468592    -0.295432
"""

nh3-inverted.xyz

4
NH3 with the umbrella inverted (mirror image through the xy plane)
N      0.000000     0.000000    -0.098477
H      0.000000     0.937185     0.295432
H     -0.811626    -0.468592     0.295432
H      0.811626    -0.468592     0.295432

openqp nh3-neb.oqp

• The reactant is the PBE0/6-31G* minimum (from nh3-opt.oqp, r(N–H) = 1.017 Å, ∠HNH = 105.9°); the product is its mirror image.
• neb(S0,product=...,images=9) relaxes a band of nine images, including the two fixed end points, on the ground-state surface. Both end points should be minima of the same method, basis set and integration grid.
• dftgrid(rad_npts=150,ang_npts=974) replaces the default SG2 grid with a denser 150 × 974-point grid; every input on this page uses it. The default grid is not symmetric under the three-fold rotation of NH₃, so it moves the energy by about 1e-5 hartree when the molecule is rotated and splits the degenerate vibrational frequencies by up to 2 cm⁻¹. The denser grid removes both effects, at about ten times the cost.

The run takes about 7 minutes on 4 threads (under a minute with the default grid) and converges in 22 band iterations:

   PyOQP: NEB Has Converged (fmax=1.604e-03, frms=5.392e-04 in 22 iters)
   PyOQP: Native NEB path written to .../nh3-neb_neb.xyz

What you get

nh3-neb_neb.xyz contains all nine images as one multi-frame XYZ file, with the energy of each image in its comment line; open it in OQP Studio, VMD, or Avogadro to play the path. The energies:

Image	1	2	3	4	5	6	7	8	9
E − E(min), kJ/mol	0.00	4.21	13.70	22.76	26.32	22.76	13.70	4.21	0.00

Check the top of the band

The highest image is close to, but not exactly at, the transition state. To confirm it, optimize the planar structure directly (nh3-planar-opt.oqp): started from an exactly planar geometry, the D3h symmetry keeps it planar and the optimization lands on the saddle point, r(N–H) = 0.999 Å. A Hessian there (nh3-planar-ts.oqp) has exactly one imaginary frequency, the umbrella motion, and the degenerate pair of bending modes (modes 2 and 3) agrees to 0.01 cm⁻¹:

   Mode  Symmetry     Frequency(cm-1)      IR(km/mol)      Raman(bohr^4/amu)
      1        b1           -890.85       591.962256             0.000000
      2        b2           1608.52        44.254929            28.998035
      3        a1           1608.53        44.253845            29.000777

This table is from GitHub main commit 0b75a06, which includes the IR unit fix openqp#533; older builds print the same frequencies with IR intensities 23 times smaller.

Quantity	Reference value
Highest NEB image	26.32 kJ/mol
Optimized planar transition state	26.30 kJ/mol (−56.4672609 hartree)
Pyramidal minimum	−56.4772790 hartree
Experiment (inversion barrier)	about 24 kJ/mol

The same transition state by QST2

When both end points are known, a QST2 (quadratic synchronous transit) search locates the transition state directly, without a band of images:

nh3-qst2.oqp

dft/pbe0/6-31g* ts(S0,search="qst2",product="nh3-inverted.xyz") dftgrid(rad_npts=150,ang_npts=974)
geom="""
N      0.000000     0.000000     0.098477
H      0.000000     0.937185    -0.295432
H     -0.811626    -0.468592    -0.295432
H      0.811626    -0.468592    -0.295432
"""

Download nh3-qst2.oqp (uses the same nh3-inverted.xyz)

ts(S0,search="qst2",product=...) builds a guess between the two end points and refines it as a transition-state search. It converges in 7 steps, in about 20 seconds, to −56.4672609 hartree, the same planar structure as the direct D3h optimization above (r(N–H) = 0.999 Å). With a third structure close to the transition state, search="qst3" with guess="..." uses it as an additional hint.

Method	Barrier	Runtime
NEB, highest of 9 images	26.32 kJ/mol	7 min
QST2 transition-state search	26.30 kJ/mol	20 s
D3h optimization of the planar structure	26.30 kJ/mol	—

NEB gives the whole path; QST2 gives only the transition state, but faster.

Reading the result

• The band finds the path without a guess. Starting only from the two end points, NEB places its highest image within 0.02 kJ/mol of the separately optimized transition state.
• The path is symmetric, as it must be for a reaction between mirror images, and the barrier is close to experiment.
• Choose end points that define a meaningful path. NEB starts from an interpolation between the end points. For a reaction such as HCN → HNC, where both end points are linear, the straight-line interpolation moves the hydrogen through the C≡N bond; use a transition-state search with a bent guess instead (see the HCN example).

Try next

• Use more images, images=15, and compare the highest energy.
• Use the highest image as the starting structure of a ts(S0) search for a transition state that is not fixed by symmetry.

See also: Transition-State Searches, neb.
